‘Prfb. Cable&Drainage Channels’ Projects

‘PRFB.CABLE&DRAINAGE CHANNELS’ PROJECTS

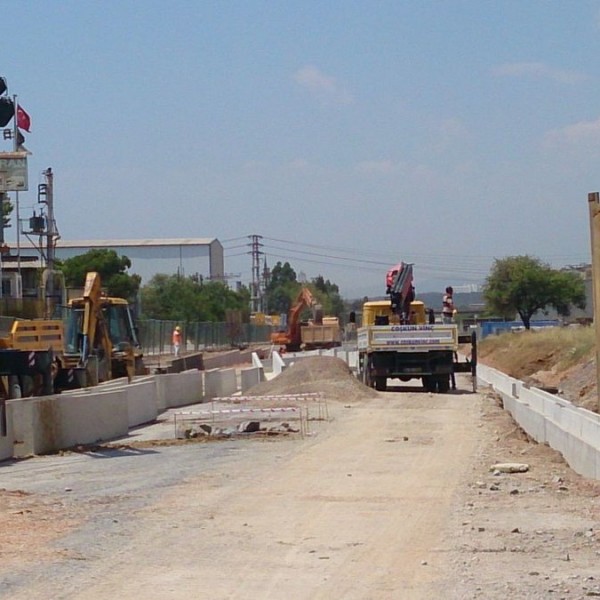

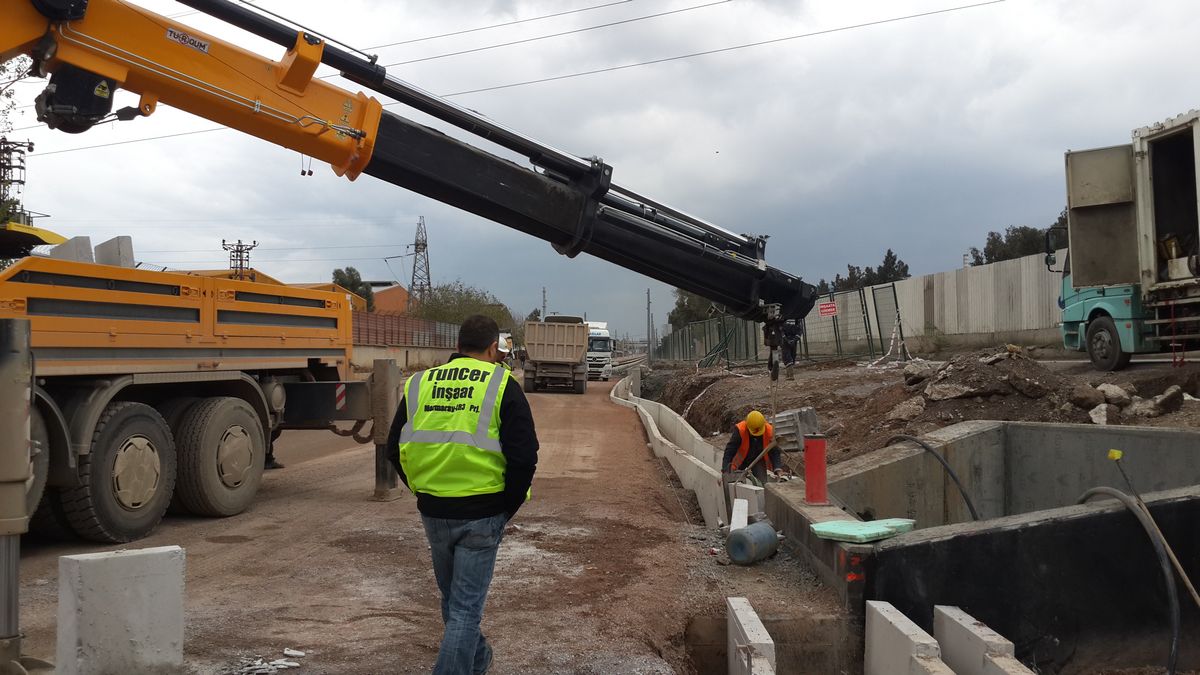

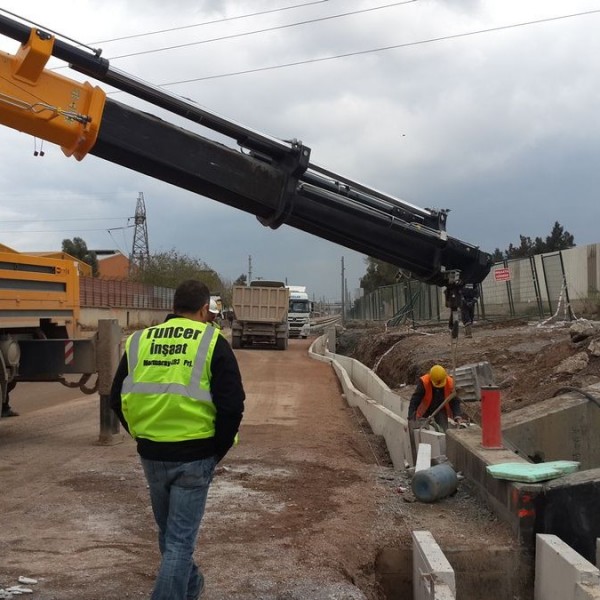

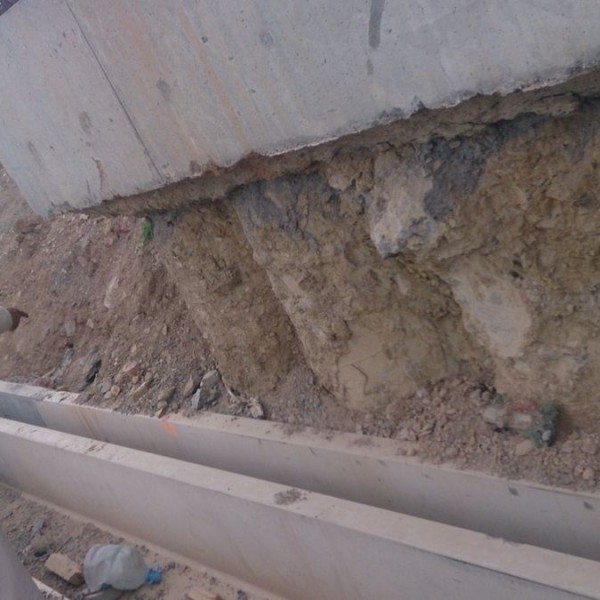

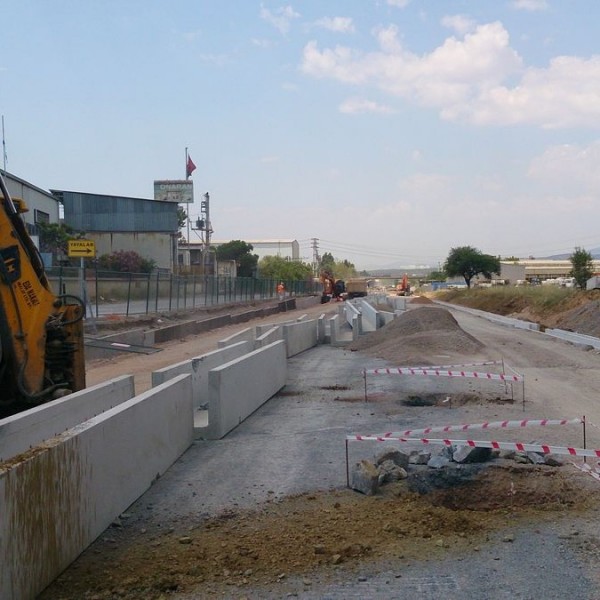

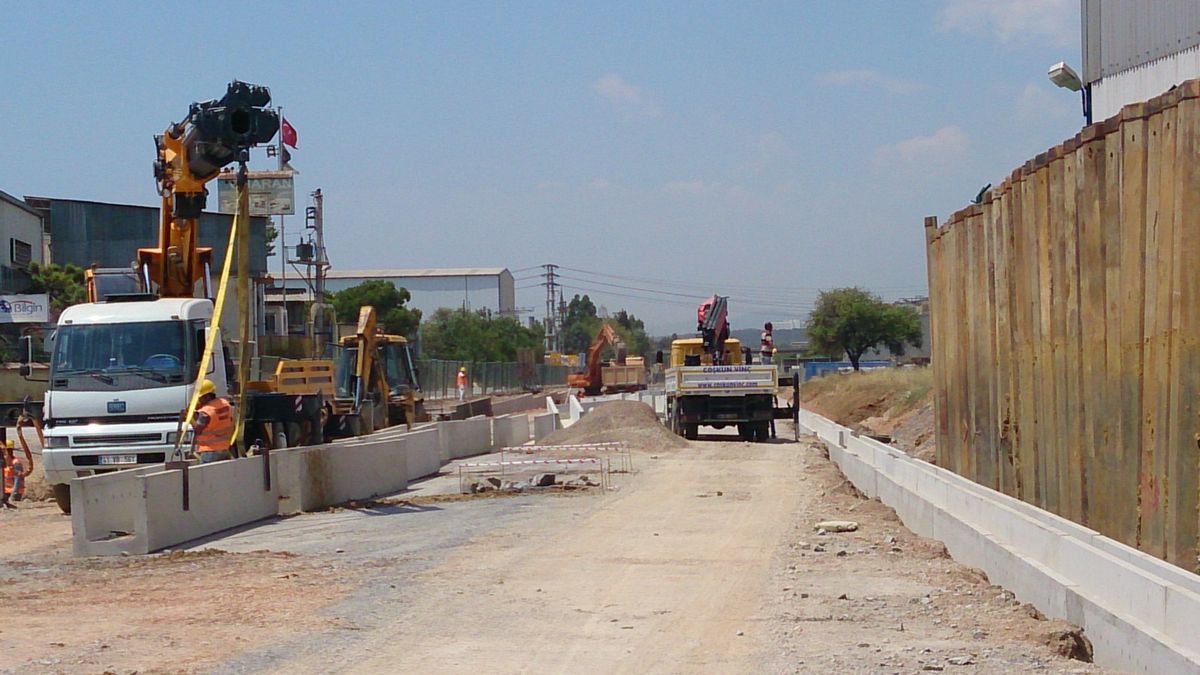

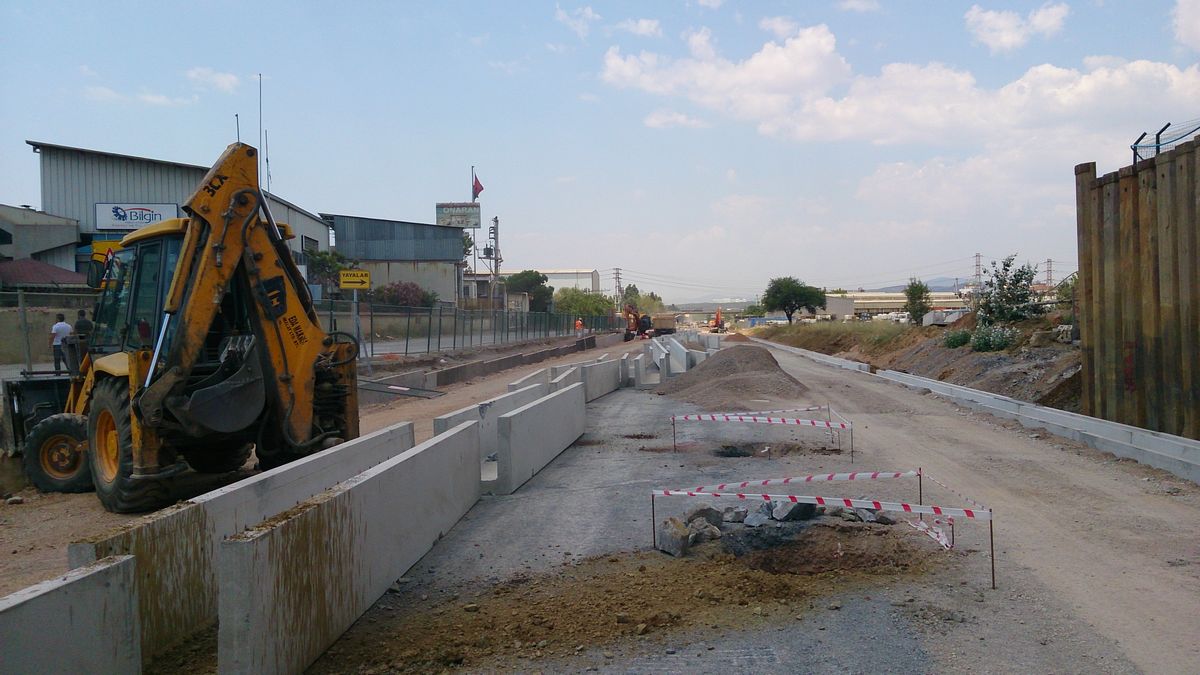

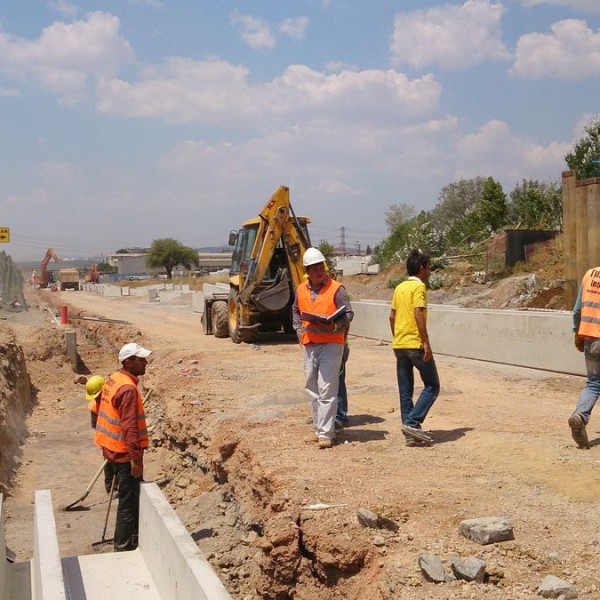

Description of Work: Assembly works of Prefabricated Cable and Drainage Channels along Railway Tracks, Connecting outfalls and culverts CH between Gebze-Pendik (Section-2)

Project Comprising of

• Supply Plants  &Equipments, Installation, Testing

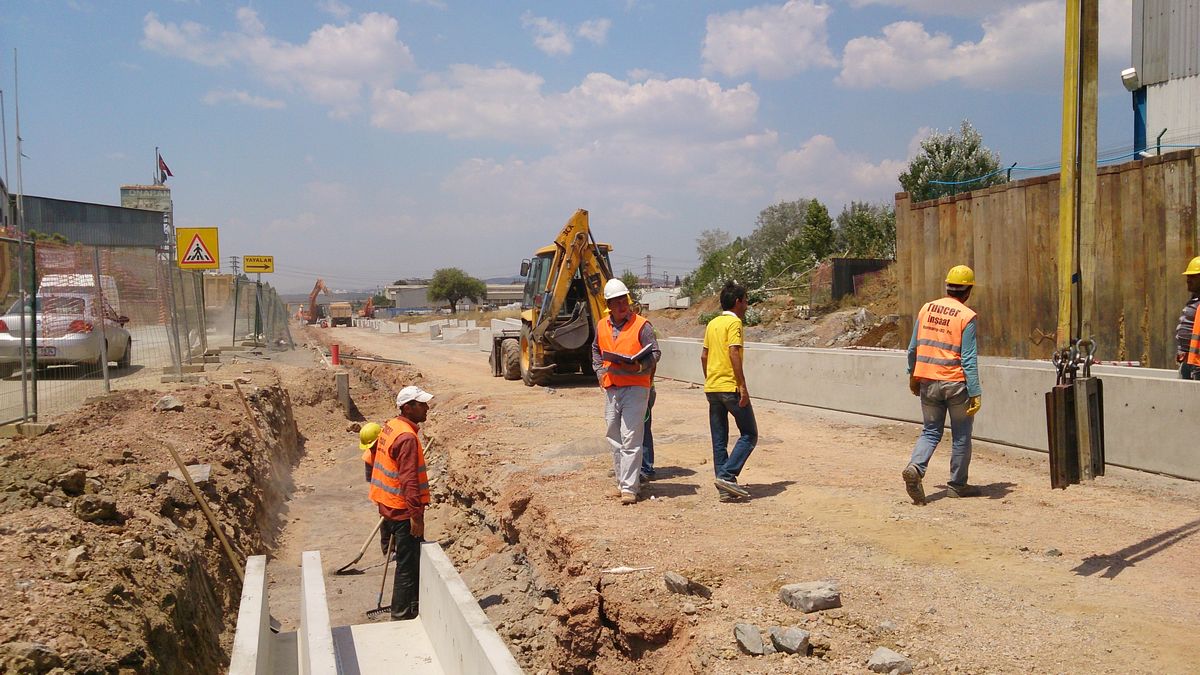

• Excavation:12.777,00 m³, Bedding(0-38mm PMT): 3.974,00 m³
• Type-1 Drn.&Ductings (int.dim.700/240x610): 21.455,00 mt
• Type-1 Single Drainage (int.dim.700/240x610): 4.202,00 mt
• Type OA-OB Single Drain. (int.dim.550x610/700): 3.756,00 mt
• Type OC Single Drainage (int.dim.550x850): 6.403,00 mt
• Type-2 Drainage Channels (800x240/760): 140,00 mt
• Type-3 Single Drainage (int.dim.800/240x860): 3.196,00 mt
• Type-3 Single Drainage (int.dim.700x610): 14.079,00 mt
• Type Covers for Drainage Channels (1-2-3-4-5): 23.253,00 Nos.

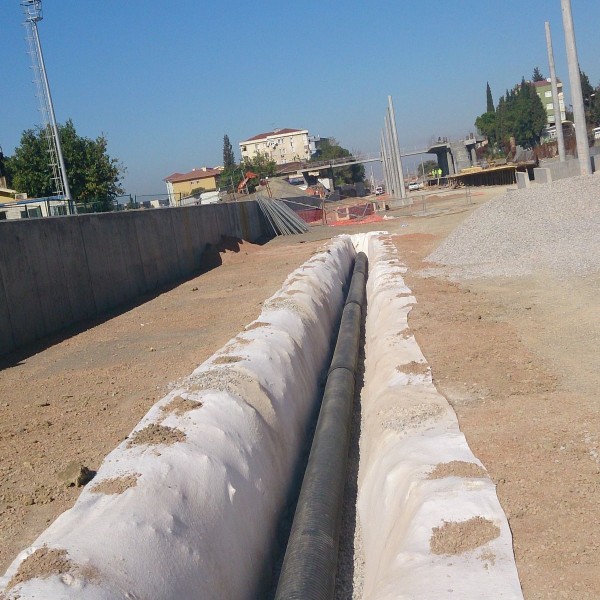

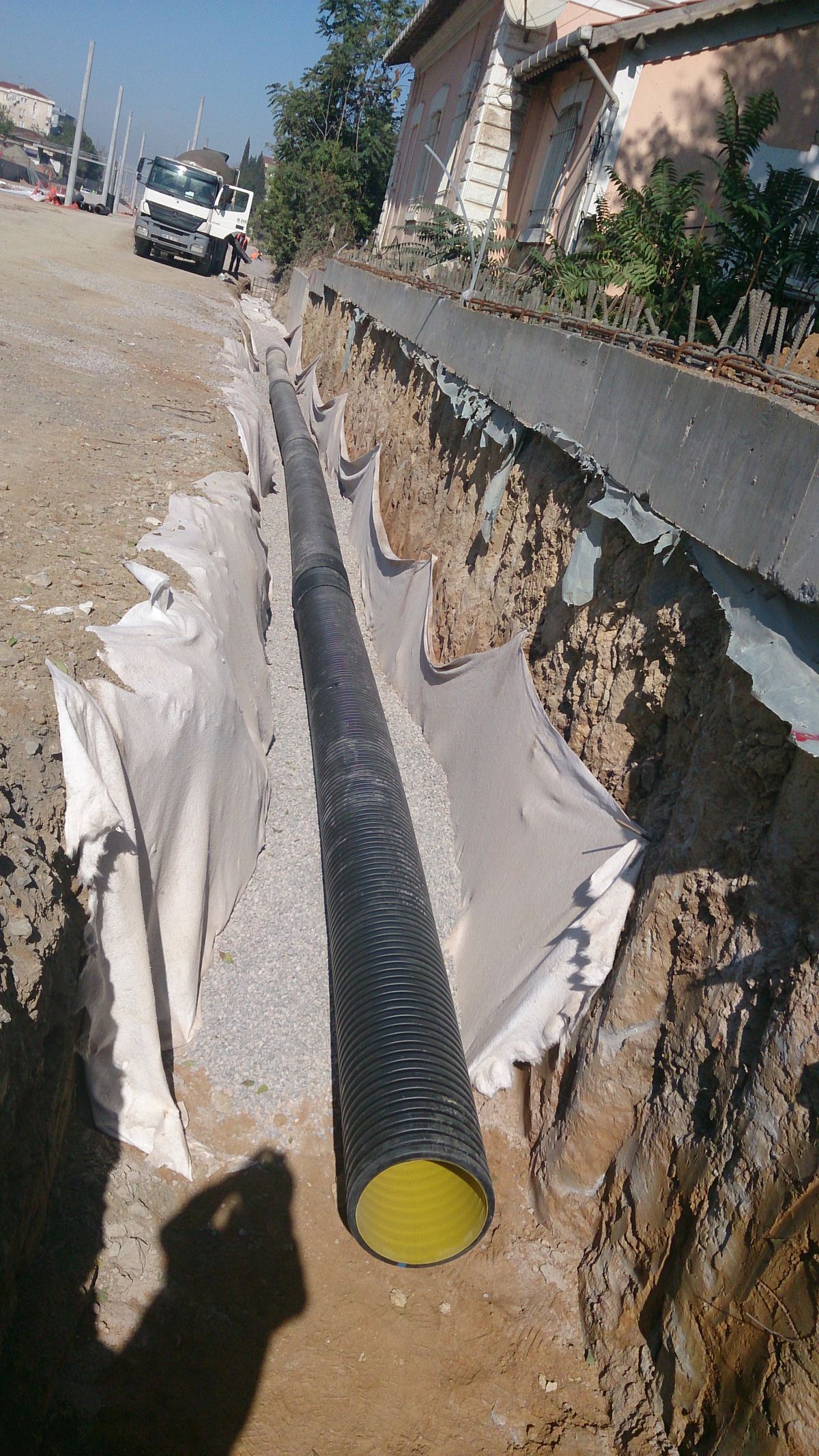

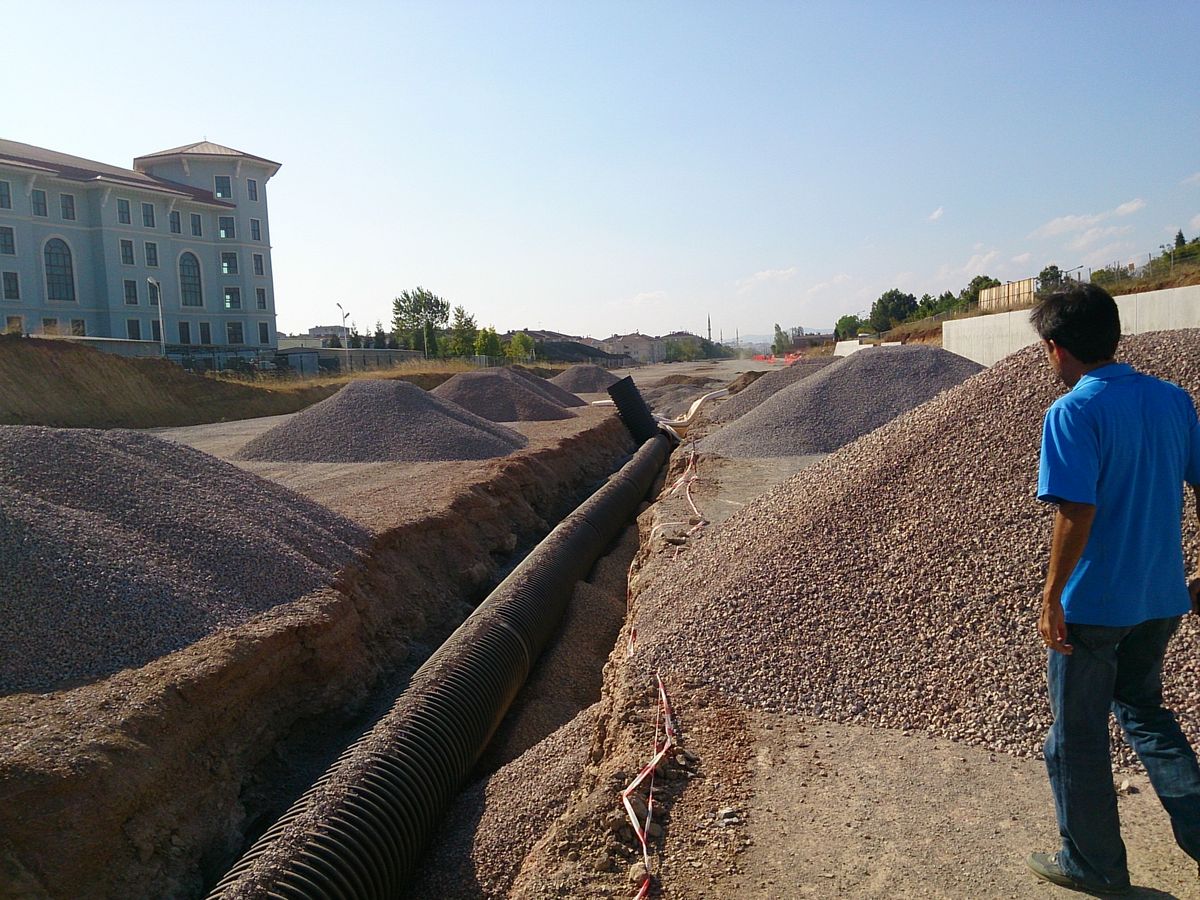

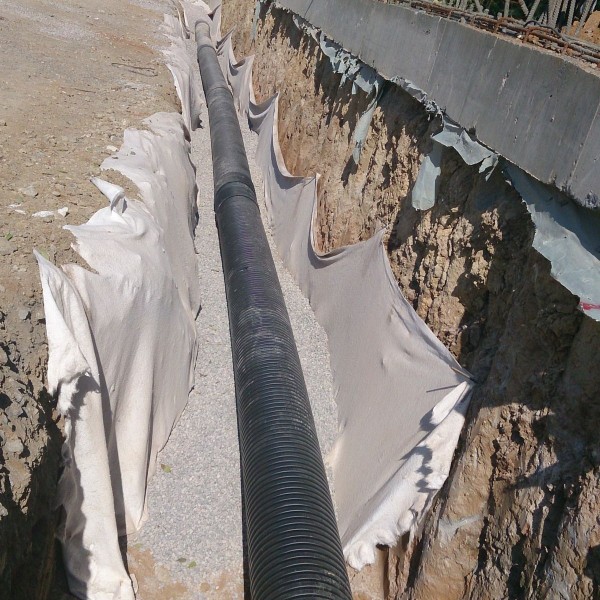

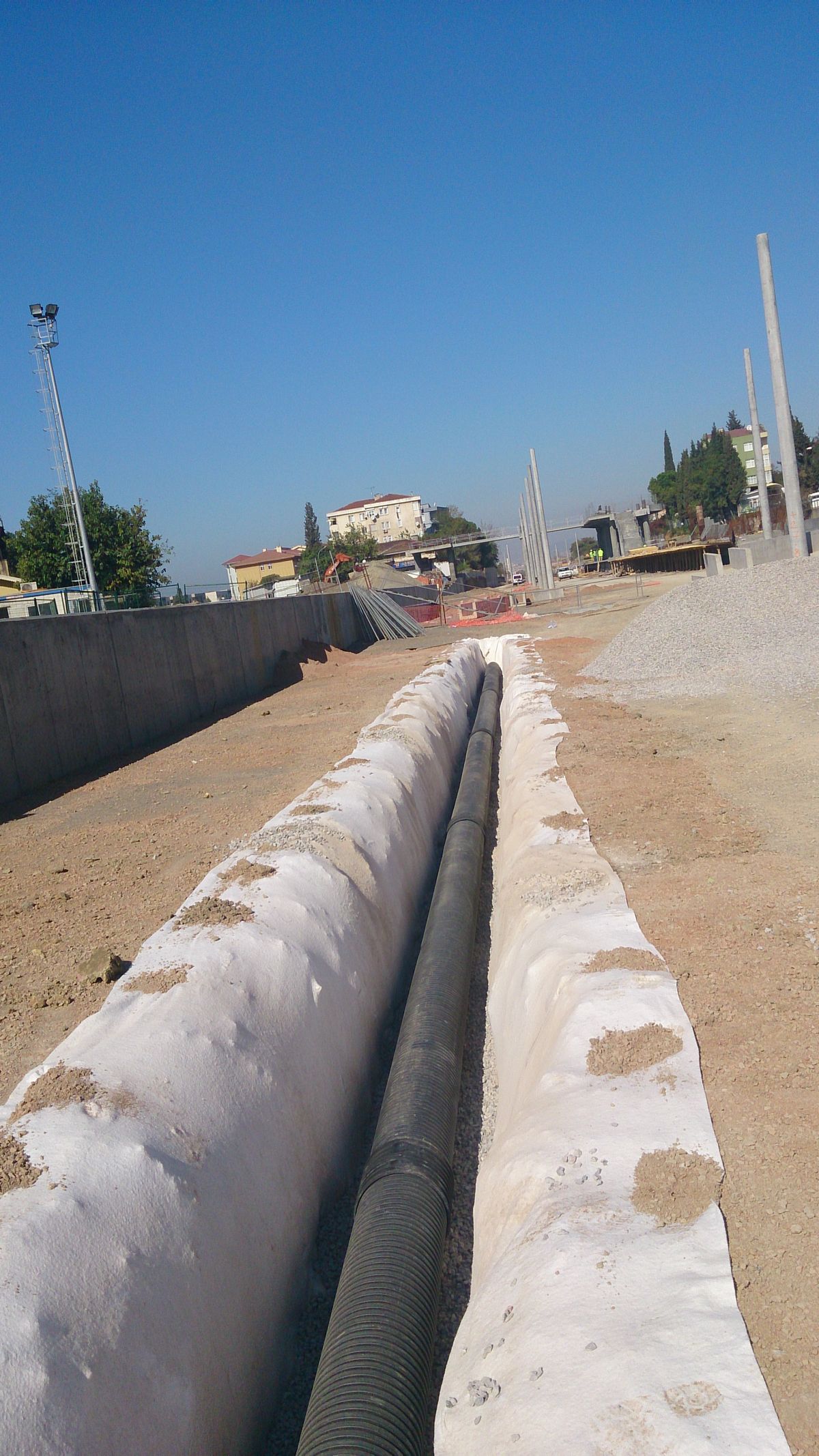

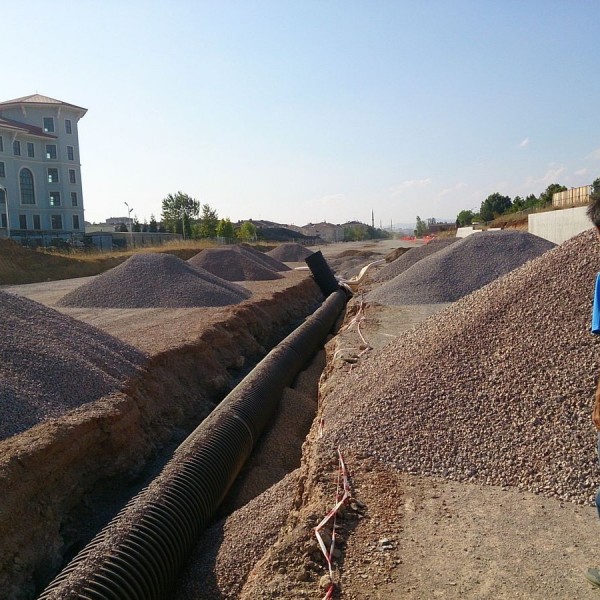

• Const&Inst. of Ø300-1200mm HDPE Filter Pipes: 6.723,00 mt

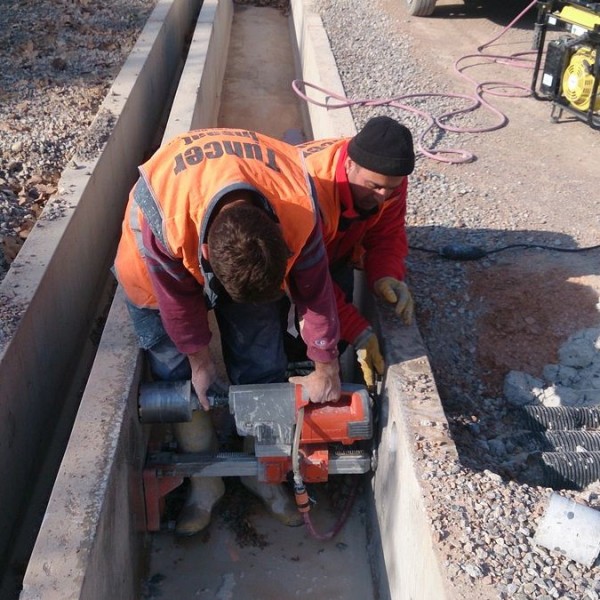

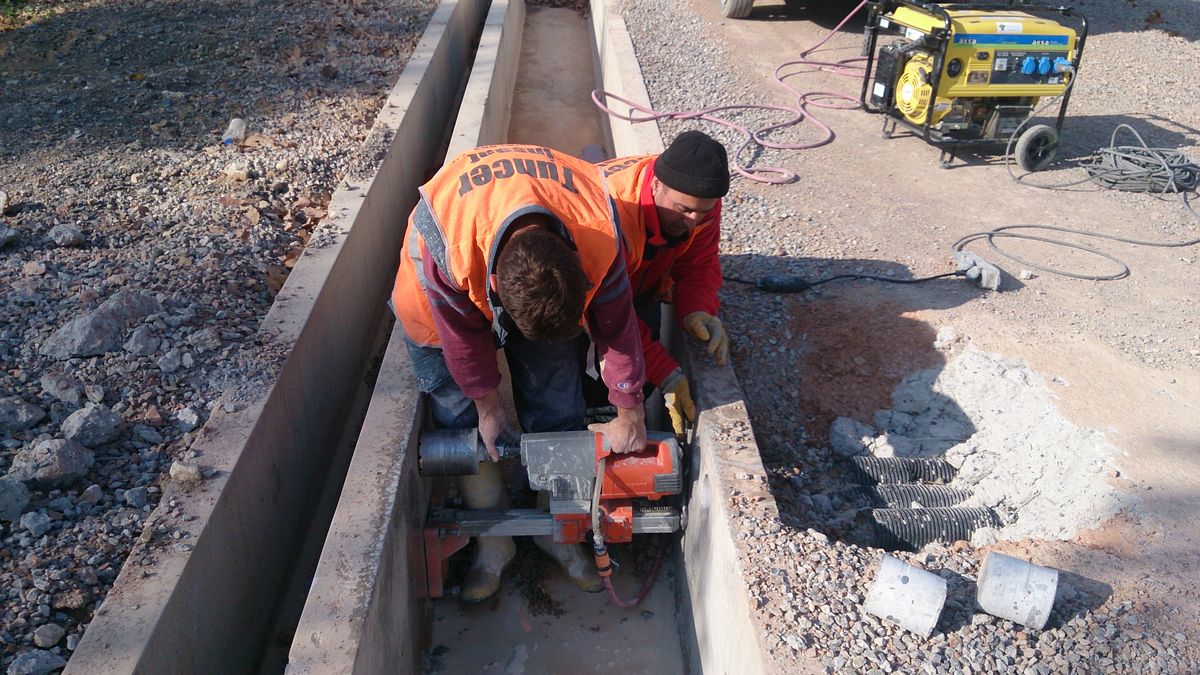

• Installation of Corings(Ø120-Ø500mm), Precast joint fillers.

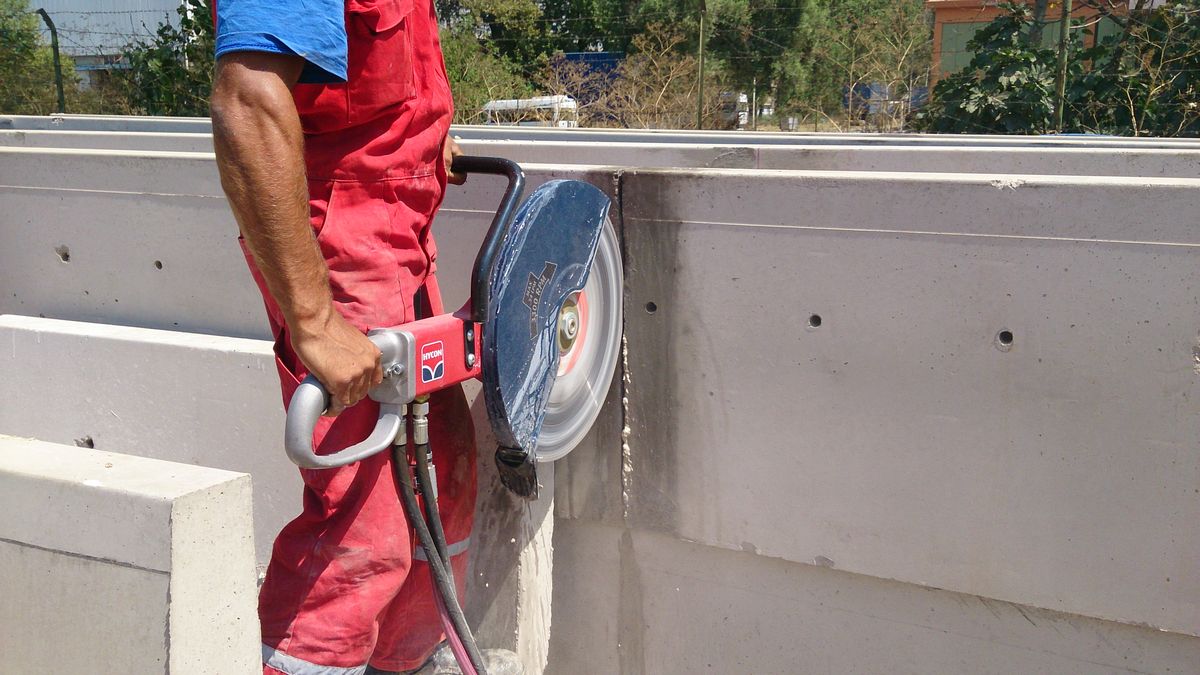

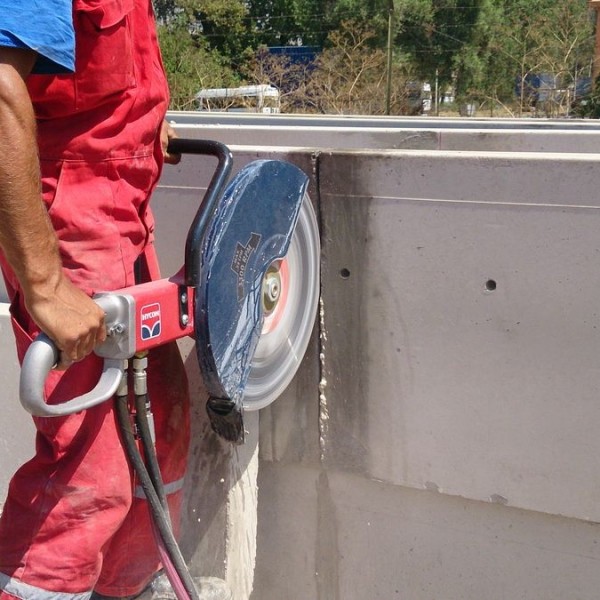

• Single-Double Precast Cable Chann. Sigment Cuttings: 984,00 Nos
• Laying Geotextile Matr. (100gr/m²-400gr/m²): 3.008,00 m²
• Precast Channels supplied by Client.

Total Contract Value : 2.819.789,13 -EURO
Main Contractor : Obrascon Huarte & Siemens J.V
Location : Istanbul / TURKEY
Completed Date : 2015
